About Foxglove

We use Foxglove to visualize the data being published by our ROS nodes.

This guide is intended as a series of instructions to quickly setup foxglove for our f1tenth environment, for more detailed information please refer to the official foxglove documentation.

Installation

To install the Foxglove-studio app follow these instructions, a web app is also available.

Create an account and log in.

Connecting to the Rosbridge websocket

When running the bringup.py launchfile on our f1tenth cars (or the sim.py launchfile in the docker image) a rosbridge websocket will also activate.

The websocket's default port is 9090, so it's address will be:

ws://<car_ip>:9090
for the cars, and
ws://localhost:9090
for the docker image.

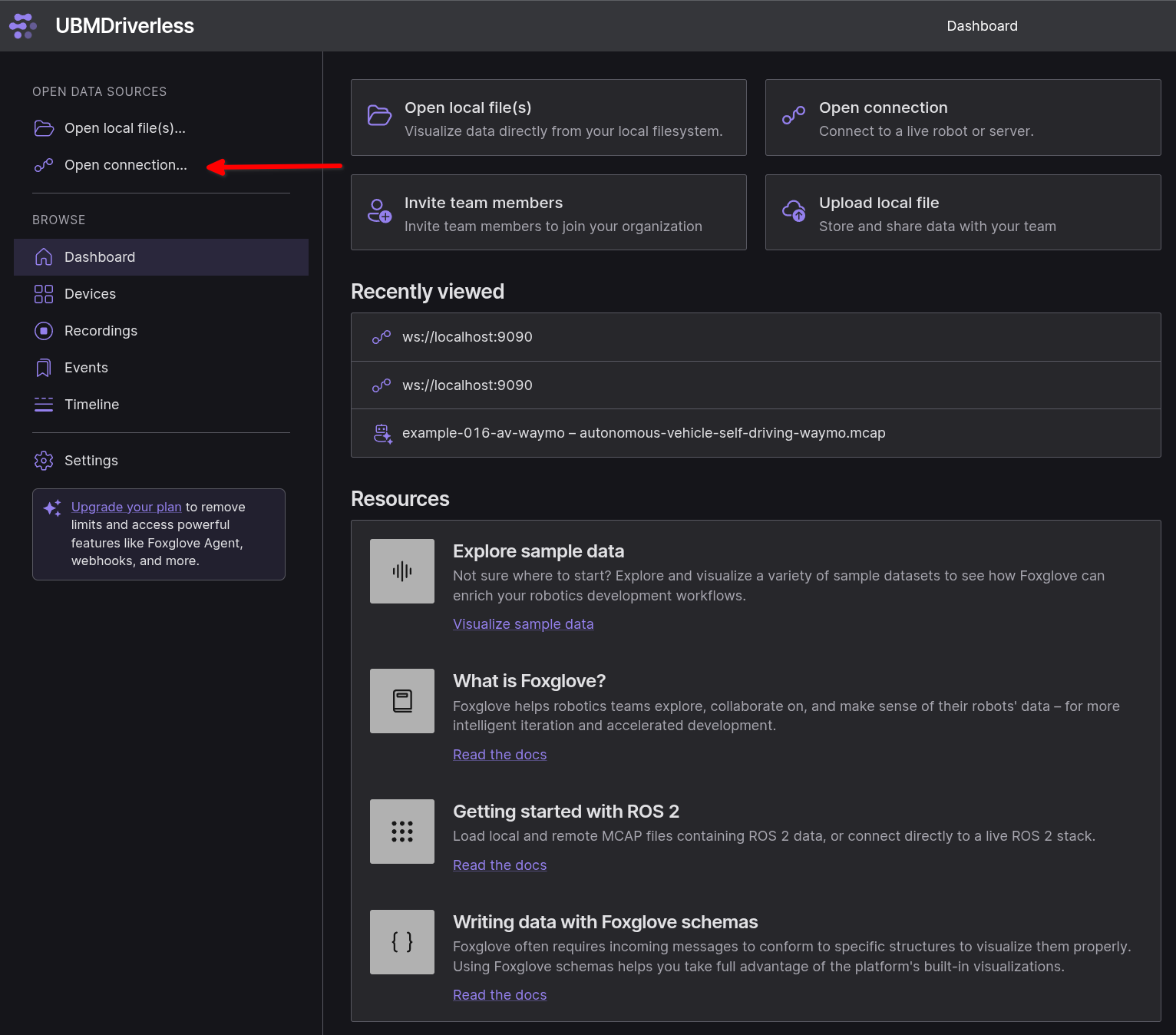

Open the Foxglove app and select Open connection...:

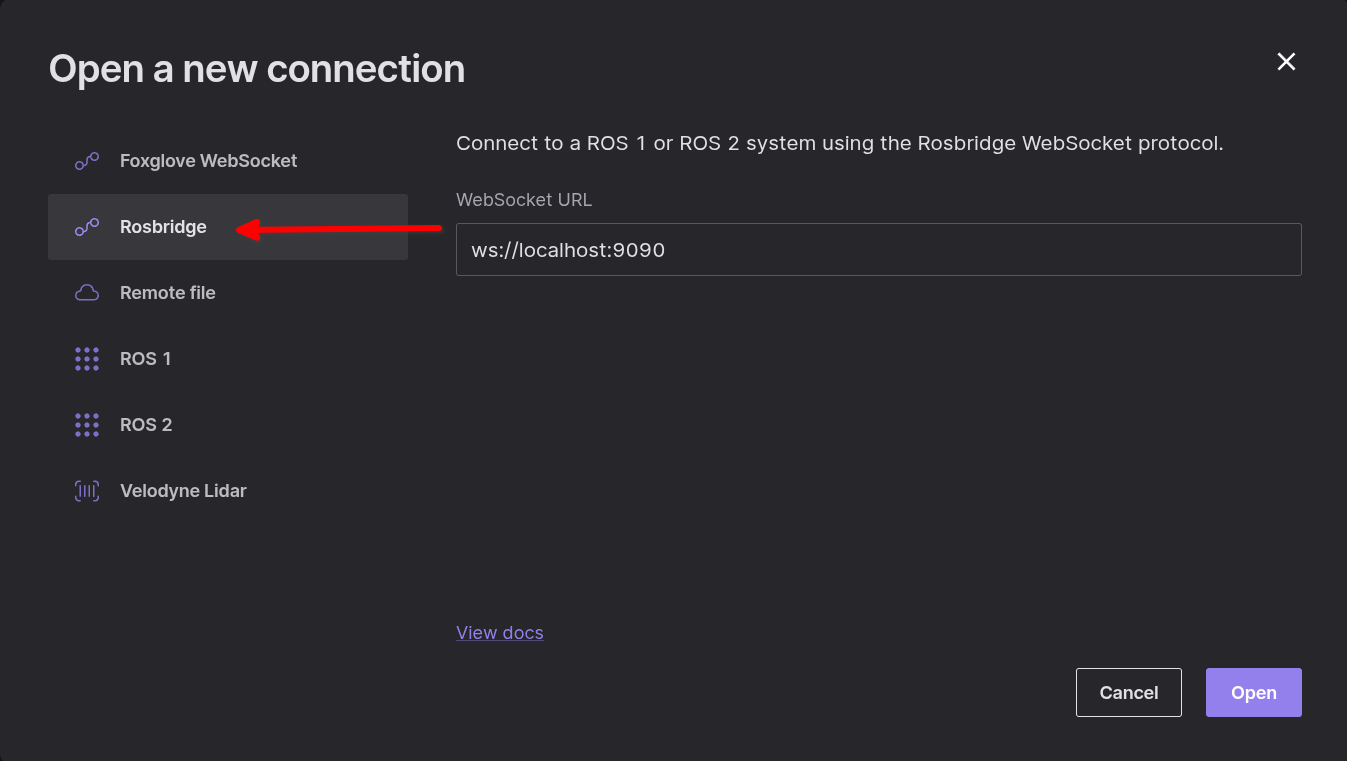

In the pop-up window select Rosbridge and make sure the address is correct: Then click Open.

You should now be connected to the web socket.

Settings

The data form the ROS topics can be viewed in the 3D Panel, by selecting the panel you can change its settings in the sidebar on the left (this section is called Panel).

For F1tenth set the Display frame to map and hide the transforms in the Transforms section. To view the car model scroll down to Custom layers and click on the three dots to add a URDF, in the URDF you just added select Topic as source and /ego_robot_description in the Topic value. For better visibility set the Color by value of the /scan topic to range.

Panels

You can change your layout as you see fit, some panels you will likely find useful while working are:

  • Raw messages: displays the content of the messages being published on a topic in real time.
  • Topic graph: displays a graph of the ros nodes currently active, like rqt_graph
  • Publish: allows to publish messages in any of the active topics

Replaying Ros-bags

Foxglove implements an easy way to view the data recorded in a ros-bag file:

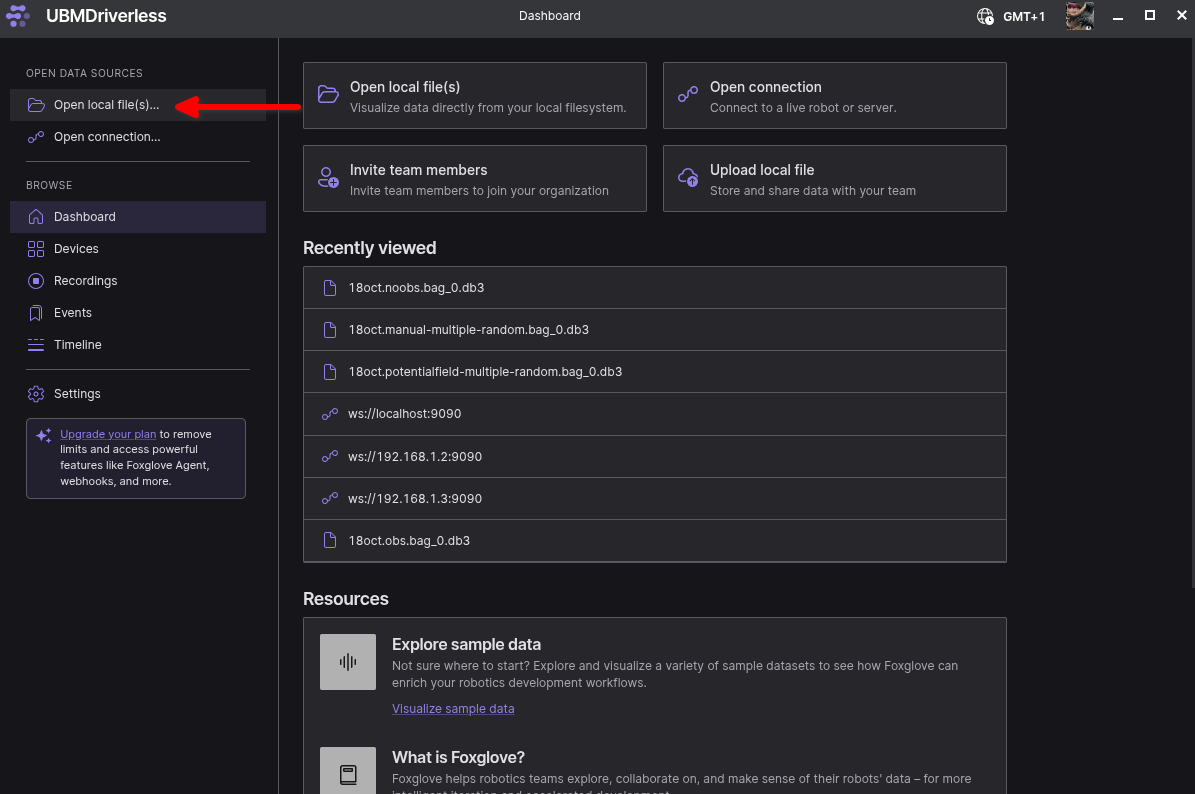

First, select Open file(s):

Then select the ros-bag file you'd like to view, these are in the .db3 format usually.

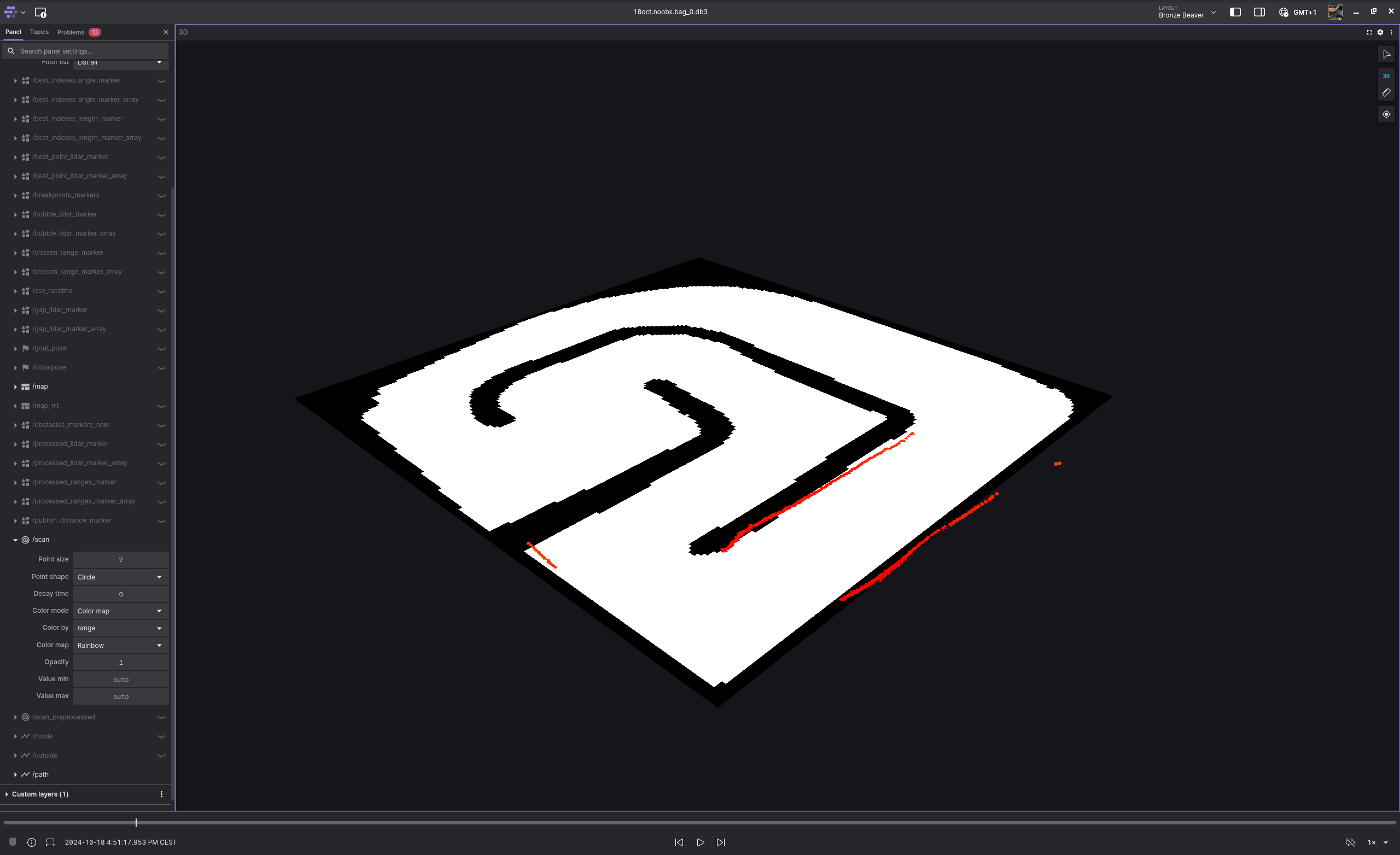

You will now see the usual Foxglove panel with the addition of a playback bar at the bottom that allows to view the ros-bag recording like a video player:
